LHDN E-Invoicing

Also known as electronic invoicing, this feature allows you to send compliant e-invoices to your buyers by reporting them to LHDN and validating them before distribution. It enables near real-time validation and storage of transactions, catering to Business-to-Business (B2B), Business-to-Consumer (B2C), and Business-to-Government (B2G) transactions. It also allows for instant syncing of customer and supplier contacts.

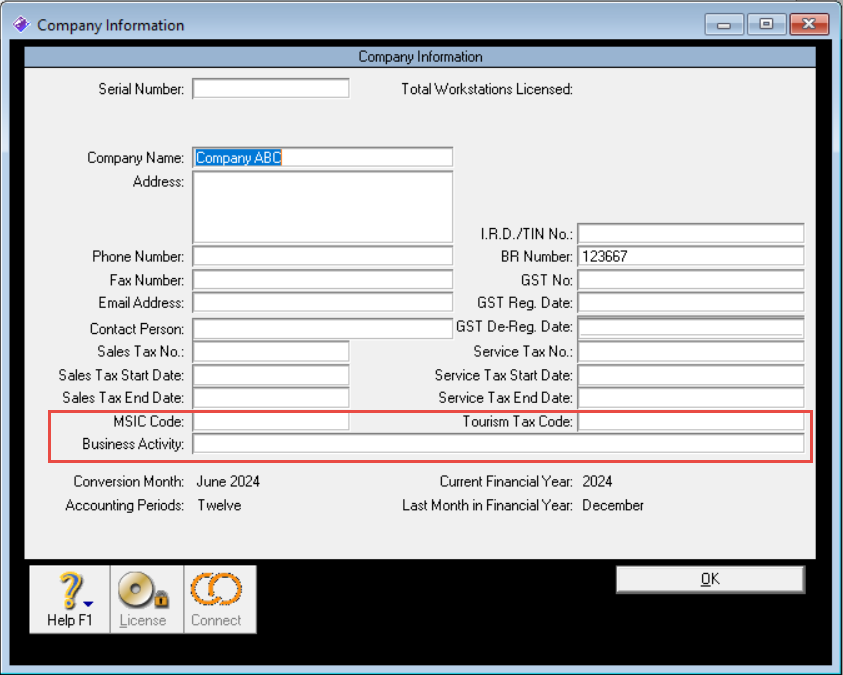

1. Setup your profile and other system parameters

• As a supplier, you are required to fill up your business details i.e. MSIC Code and Business Activity.
• You will also need to update the IRD field with your latest TIN number if it is applicable.

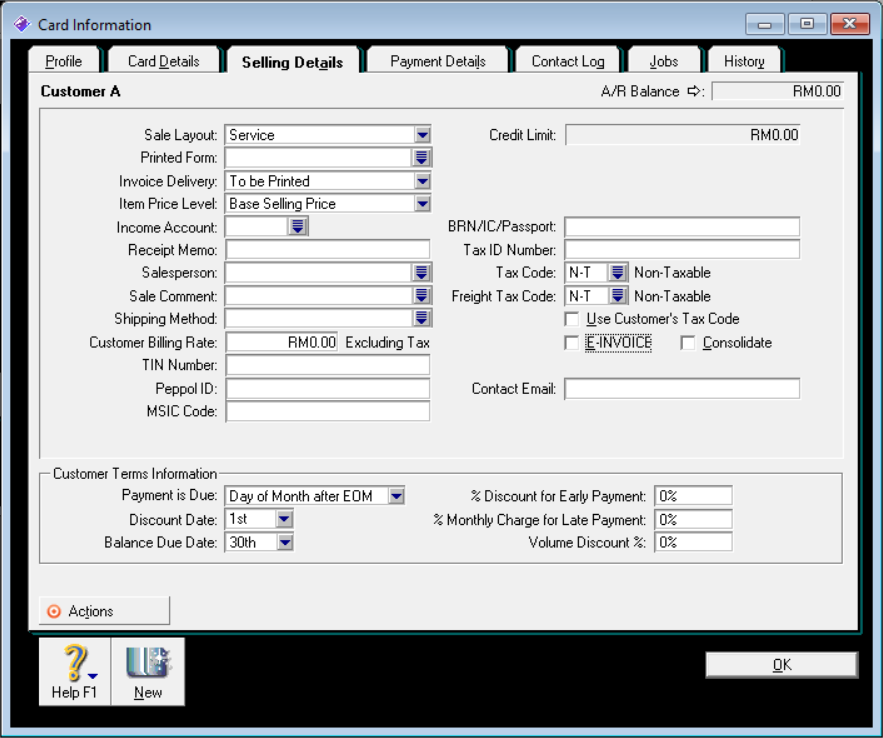

2. Setup your Customer and Supplier profile



•
• In order to generate an e-invoice for your customer, it is mandatory to collect LHDN-required information such as customer TIN number, BRN/IC/Passport number, MSIC code and more from your customer.
•
• Here is the guideline to setup your Customer Card Information:

• • • • For 'Malaysian Company', both TIN and Registration No. are required.
      • For 'Malaysian Individual', provide either TIN or NRIC Number, or both TIN and NRIC Number.
      • For 'Foreign Contact' or 'Exempted Person', both TIN and Registration No. are optional.
      • You may also set the default e-invoice flag for regular customers who require e-invoice.

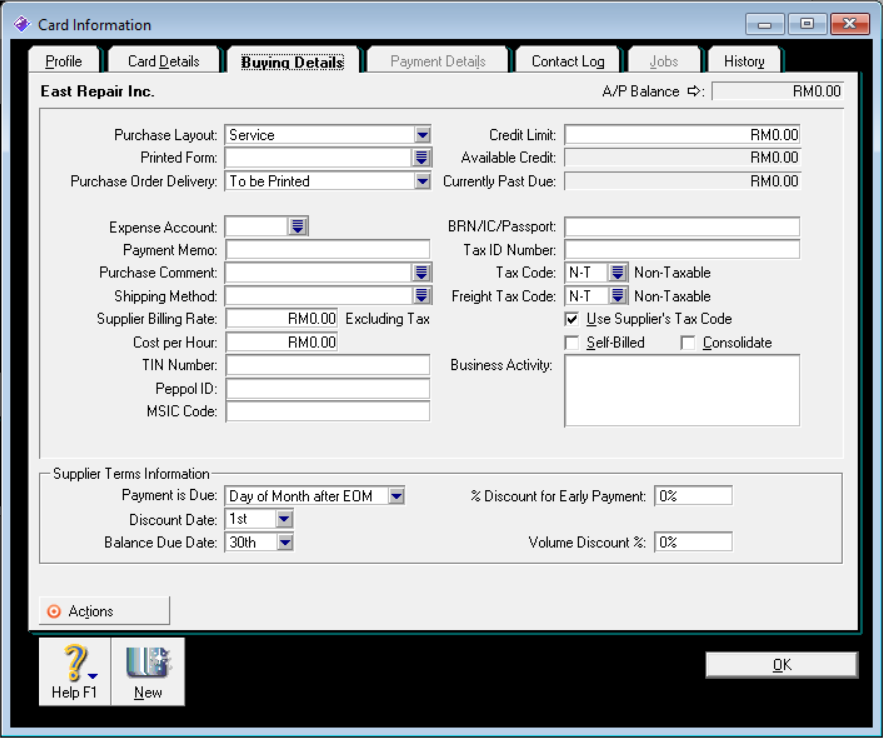

      • For Supplier perspective, similar information is also required for self-billed invoices.
    •

3. Setup your Chart of Accounts

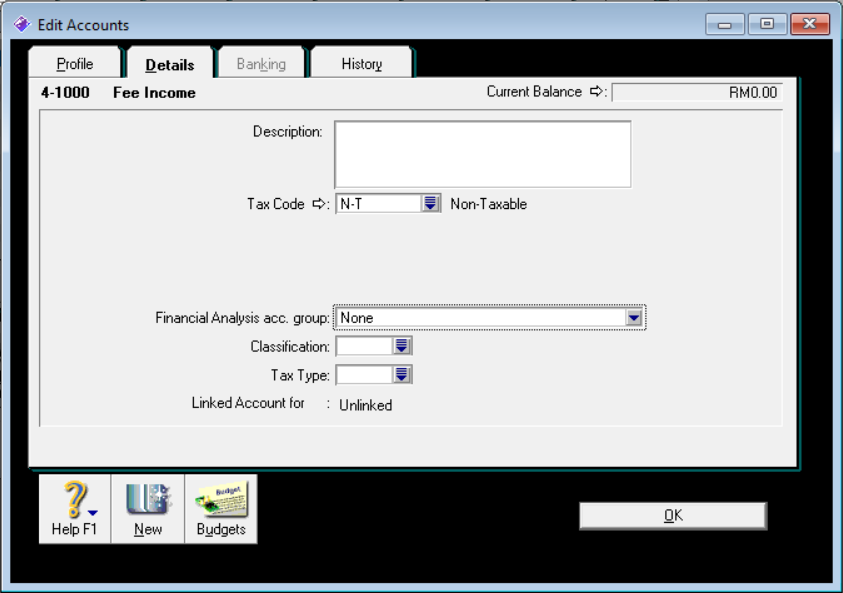

•  If your business is in the service industry, you can setup the default Classification code for your chart of accounts.
• Tax Type is another new field introduced in the ABSS system, where you can tag your transactions to the LHDN-defined tax type. The Tax Type field is not available in existing SST tax code list.

•



Note: ABSS system ensures that the Classification code and Tax Type is automatically updated according to LHDN’s changes.

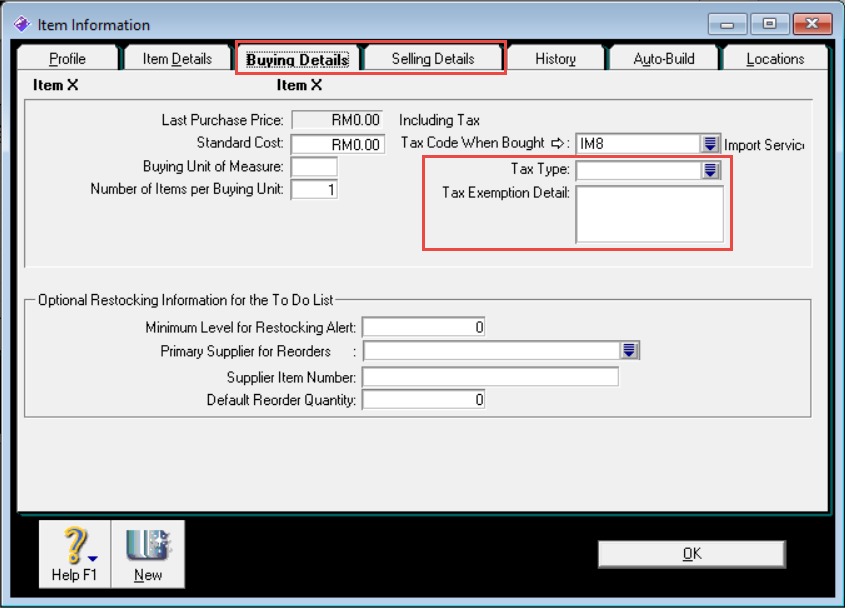

4. Setup your Item Information



• If your business involves products, you are required to also prepare your Item Information with the default tagging for Tax Type and Tax Exemption Detail if applicable.

• This is applicable to Selling Details and Buying Details.

• You are also required to update the Unit of Measure for your sales and purchase details to follow the code in LHDN measure list, you can refer to this list for details: https://sdk.myinvois.hasil.gov.my/codes/unit-types/

• By default, ABSS system will auto set the UOM to EA (each) if there is no unit of measurement defined in item list.

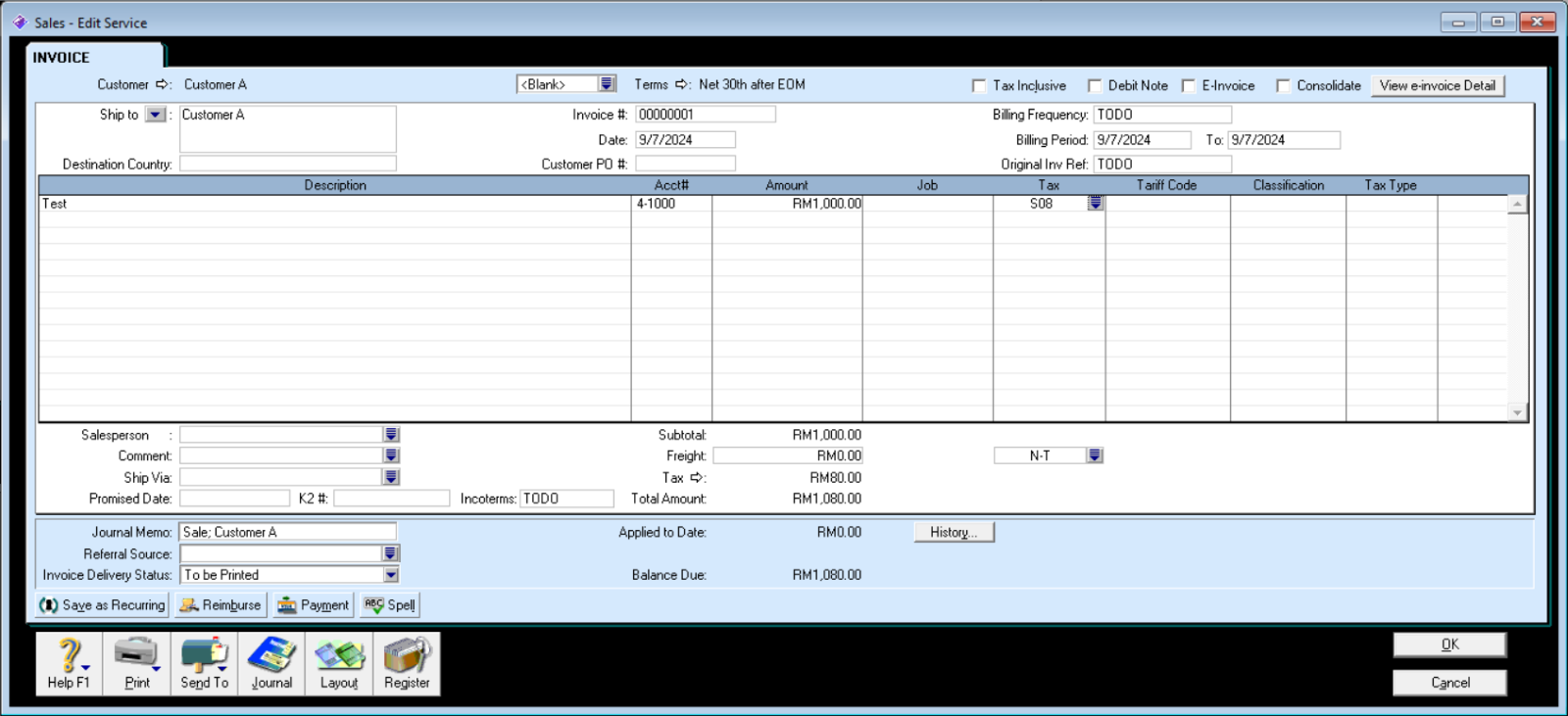

5. Process E-Invoice



• Current E-Invoice feature only support Service Sales and Item Sales layout.

• In the Sales Invoice transaction screen, you can tick the E-Invoice checkbox if the particular invoice is required to be sent to LHDN for validation.

• Alternatively, you can create a normal invoice, consolidate it, and send it as a lump sum Consolidated Invoice to LHDN (refer to no. 7)

•

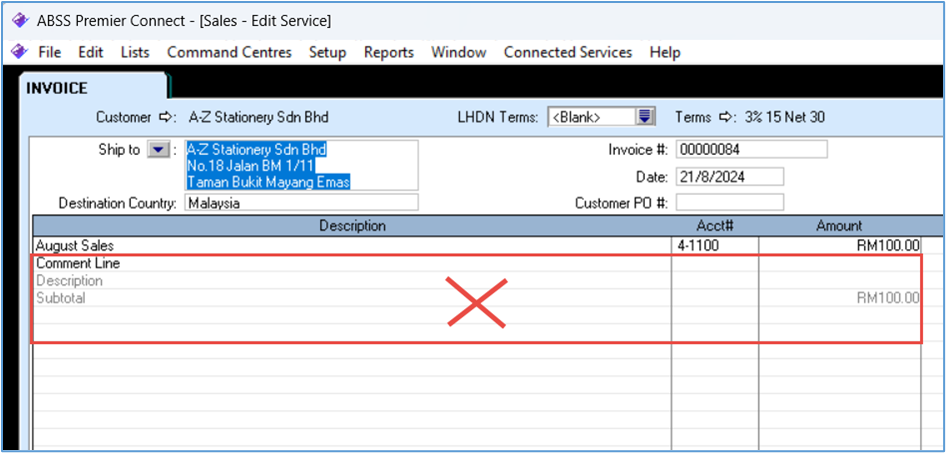

• Important Notes: user to ensure transaction does not include the below:

• • • • Transaction detail cannot include Comment, Header, Subtotal or blank line type of content

6. Process Self-billed

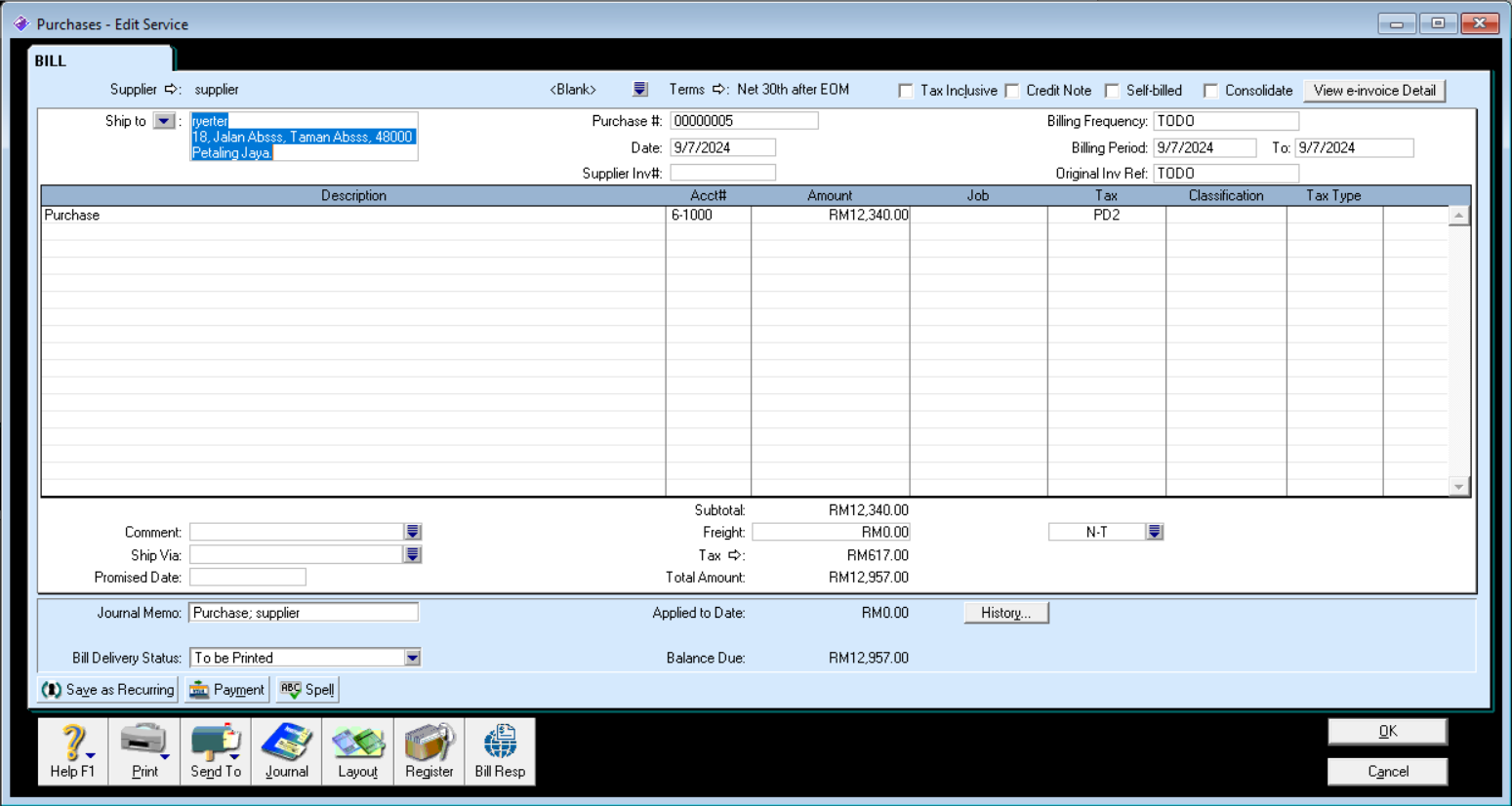

• Similar to Sales transaction, you can also generate a self-billed invoice from the Purchases module.

  • Current E-Invoice feature only support Service Purchase and Item Purchase layout.

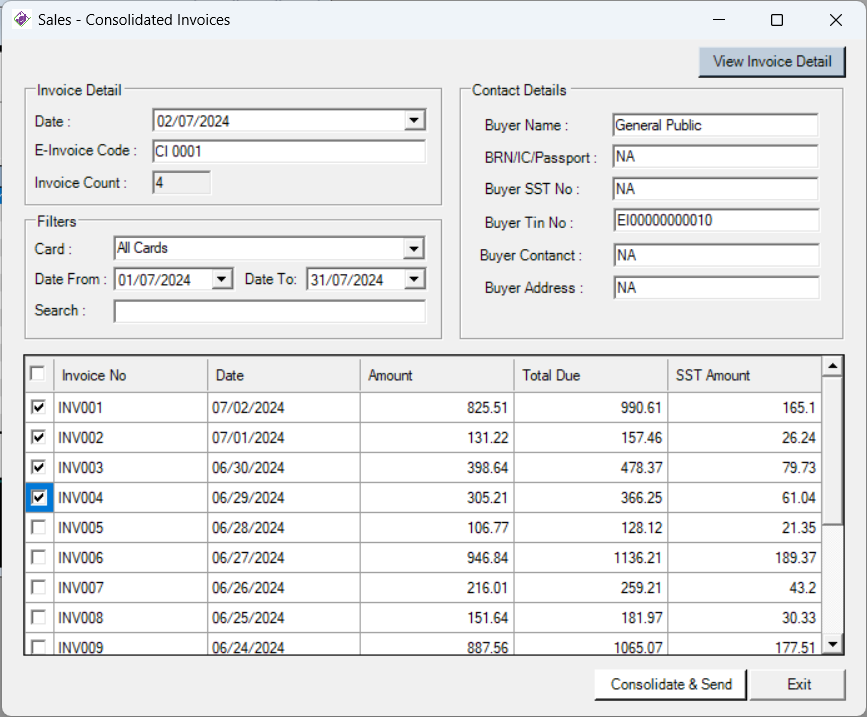

7. Process Consolidated Invoice



• Consolidated Invoice is required to be generated after a complete month, and on the first week (7 days) of subsequent month.

• You can select and tick all the invoices to be consolidated, generate the invoice and send it to LHDN for validation.

• Once validated, the View Invoice Detail button will be enabled.

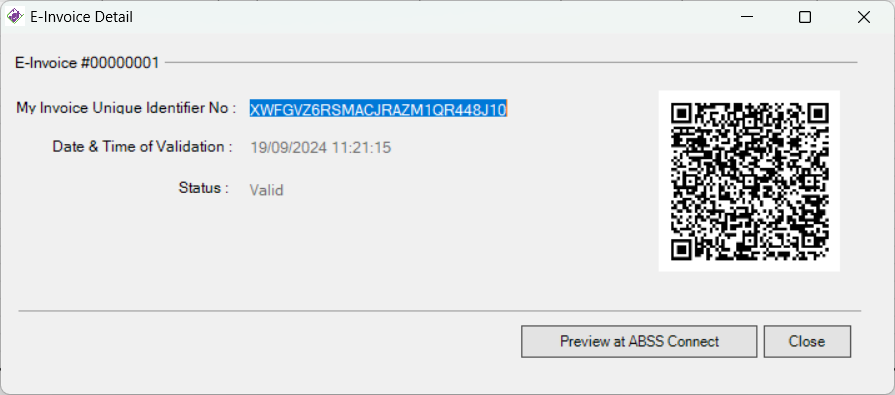

8. View Invoice Validation Status

You click View Invoice Detail to check the validation status of your invoice. This screen displays the Unique Identifier Number, Date & Time of Validation, and the Status.

You can also click Preview at ABSS Connect the E-Invoice in PDF form.

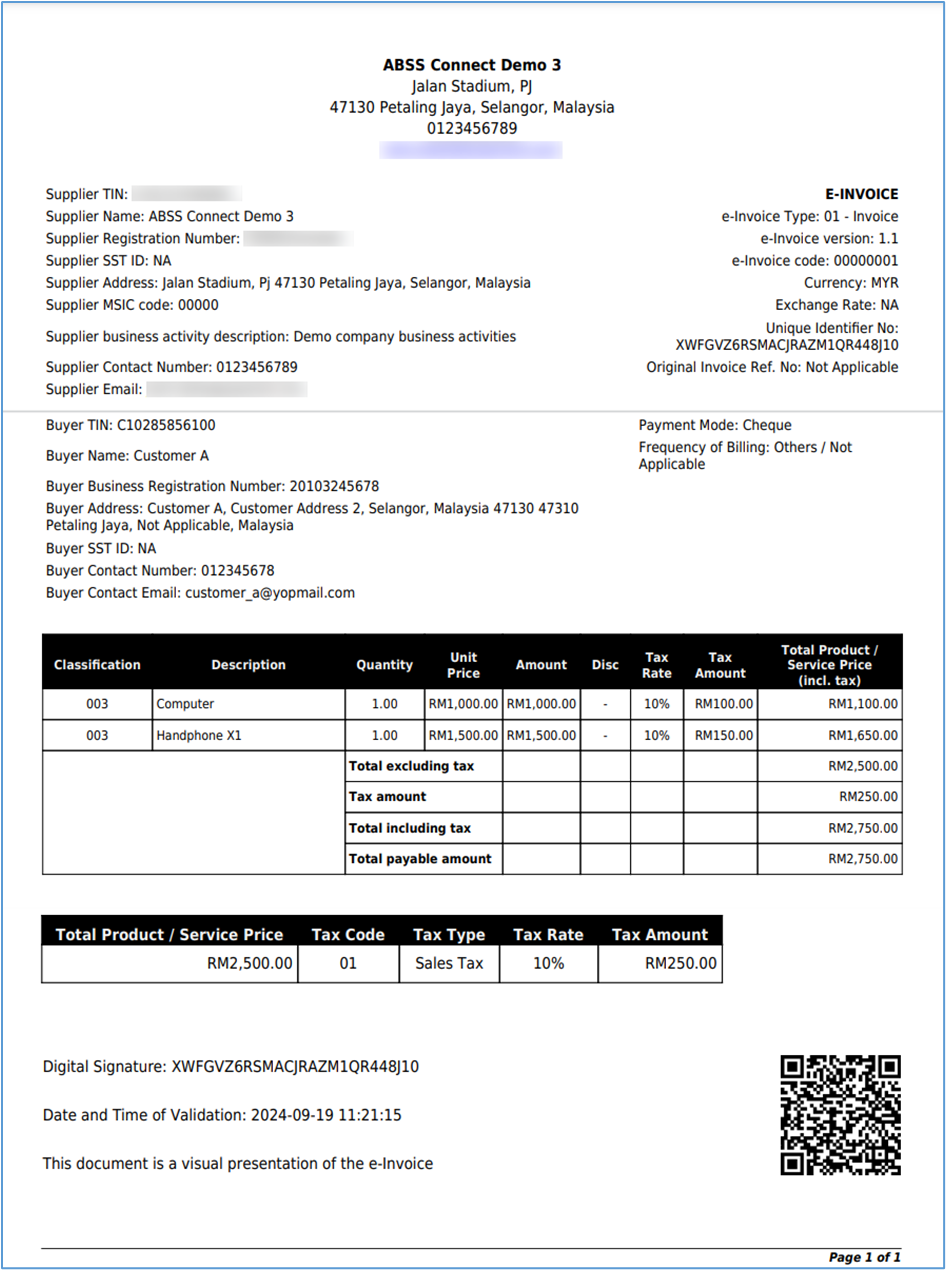

9. Preview Validated Invoice

You can also save the validated invoice in PDF form and send it via email to notify your customer.
